A Pressure Leak Test or Pressure Decay Leak Test involves pressurizing the coil, component or refrigeration circuit with dry air or nitrogen and monitoring for a pressure drop over a preset time period.

  • It is an automatic pass/fail test suitable for finding gross leaks, in the range of tens of ounces of refrigerant per year.
  • Pressure decay should be used as a preliminary test prior to Helium or Hydrogen Leak Testing.
  • Can replace water bath test but does not provide leak location; a tracer gas leak test such as Helium or Hydrogen/Nitrogen mix is required to locate leaks.

Product Items

VTech PD Series, Pressure Decay Leak Test Instrument

The VTech PD Pressure Decay Leak Test System is a low-cost, bench-top instrument for detecting gross leaks in sealed refrigeration circuits and components.

A Pressure Decay Leak test is highly recommended prior to tracer gas fine leak testing in order to avoid contamination of the test area. In specific applications, where a low leak rate resolution is sufficient, a PD test may be all is required.

The unit is completely automatic. The cycle is selected via the touch screen or optional barcode scanner and started by a convenient foot pedal. An optional two-color stack light indicates the system status.

Additional configurations include the GF10 for tracer gas filling, PD10-HE for PD test with tracer gas filling, and PD10HR for higher leak test resolution.

Show More
VTech PD Series, Pressure Decay Leak Test Instrument

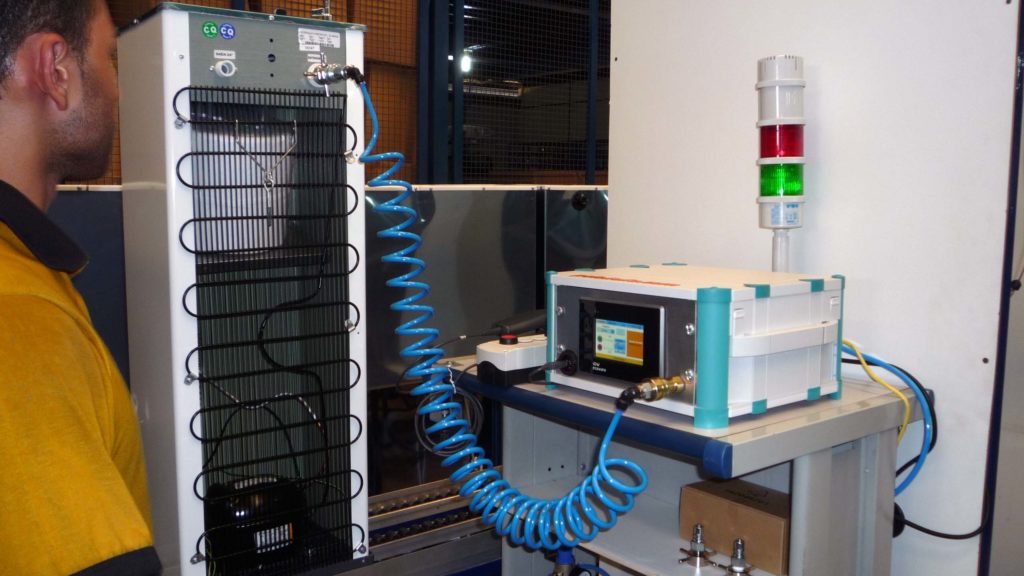

Pressure Leak Test Machine
Pressure Leak Test Machine

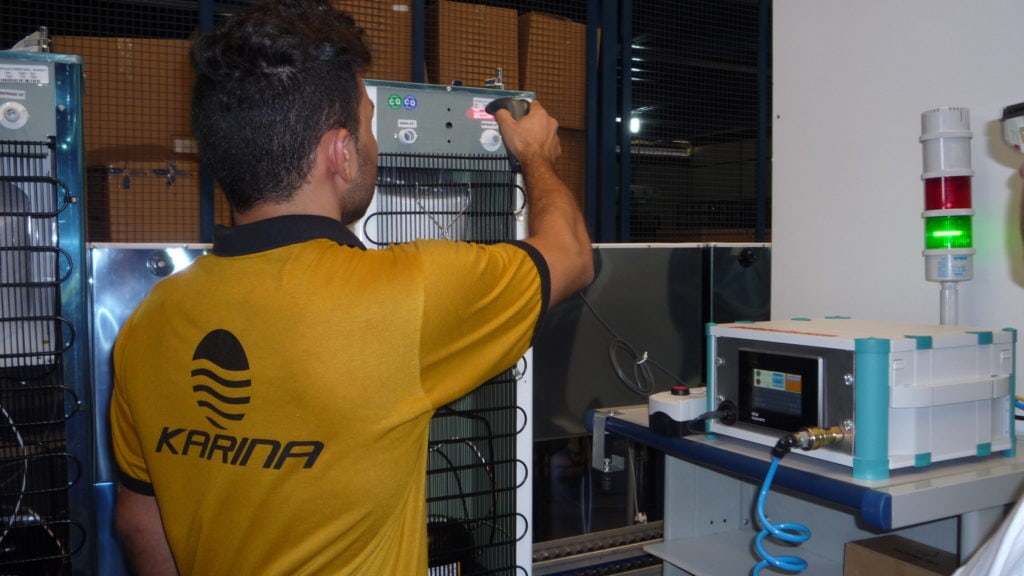

Pressure Leak Test By Worker
VTech PD Series, Pressure Decay Leak Test Instrument
Pressure Leak Test Machine
Pressure Leak Test Machine
Pressure Leak Test By Worker
  • Technical Data
    Leak test Resolution (Pressure Decay):As low as 10-4 mbar l/s with HR model
    Number of parts/test1 or 2
    Maximum working pressure:10 bar
    User Interface5" LCD Touch Screen
    Unit Presets:10
    Control:PLC
    Component Evacuation:Optional
    Leak Location?No
  • Options
    Barcode Scanning:Scan model and serial number
    Data-Management:Record process data (pdf export file)
    Stack Light2 Color Audio Alarm
  • Support
    Internet Support Ready:Remote Assistance
    Installation & Training:Guided Project Start-up & Process Education
    Technical Assistance:Free Lifetime Telephone & Email Support
  • Downloads

    VTech PD Series Pressure Decay Leak Test System

    VTech PD Series Pressure Decay Leak Test System



Request for Quote

VTech 50, Pressure Decay Leak Test System

The VTech 50 Pressure Decay Leak Test System performs a U.L. Burst Test and Pressure Decay Leak Test, in coils, compressors or refrigeration units.

The VTech 50 can be configured as follows:

  • Standard configuration with slope top enclosure
  • Cabinet with Integrated safety hood and conveyor system
Show More
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
VTech 50, Pressure Decay Leak Test System
  • Technical Data
    Leak test Resolution (Pressure Decay)± 70 Pa (0.010 psig)
    Number of parts/testup to 4
    Maximum working pressure206 bar3000 psig
    User Interface6″ or 8″ Color Touch Screen
    Unit Presets50 (Expanable to 200)
    ControlPLC
    Component EvacuationOptional
    Leak Location?No
  • Options
    Barcode ScanningScan model and serial numbers
    Data-ManagementRead and write process data
    Stack Light2 or 3 ColorAudio Alarm
  • Support
    Internet Support ReadyRemote Technical Assistance
    Installation & TrainingGuided Project Start-up & Process Education
    Technical AssistanceFree Lifetime Telephone & Email Support
    ManufacturingMade in the USA from primarily commercial components
  • Downloads

    VTech 50, Pressure Decay Leak Test System
    VTech 50, Pressure Decay Leak Test System

Request for Quote

VTech UNO-H, Pressure Leak Test System

The VTech UNO-H is designed for leak testing of coils and other components as well as refrigeration and A/C sealed systems in a production environment. The equipment is designed for high productivity and can a perform a test cycle in as little as 30 seconds. The VTech UNO-H is fully customizable in terms of test pressure, equipment lay-out and other features in order to meet the most diverse process requirements. For test pressures over 20 bar (290 psig) VTech recommends the use of safety devices (such as protection hoods) for the operator. In a typical cycle, the VTech UNO-H Series performs a Burst Test, Capillary Flow Test (optional) and a Pressure Decay Test.

Show More
VTech UNO-H, Pressure Leak Test System
  • Technical Data
    Leak test Resolution (Pressure Decay)10-3 mbar l/s
    # of parts/test1-4
    Maximum working pressure100 bar1450 psig
    User Interface12″ Color Touch Screen
    Unit PresetsVirtually Unlimited
    ControlPC
    Component EvacuationYes
    Leak Location?No
  • Options
    Barcode ScanningScan model and serial number
    Data-ManagementRecord process data
    Stack Light2 or 3 ColorAudio Alarm
  • Support
    Internet Support ReadyOption
    Installation & TrainingGuided Project Start-up & Process Education
    Technical AssistanceLifetime Free Telephone and Email Support
  • Downloads

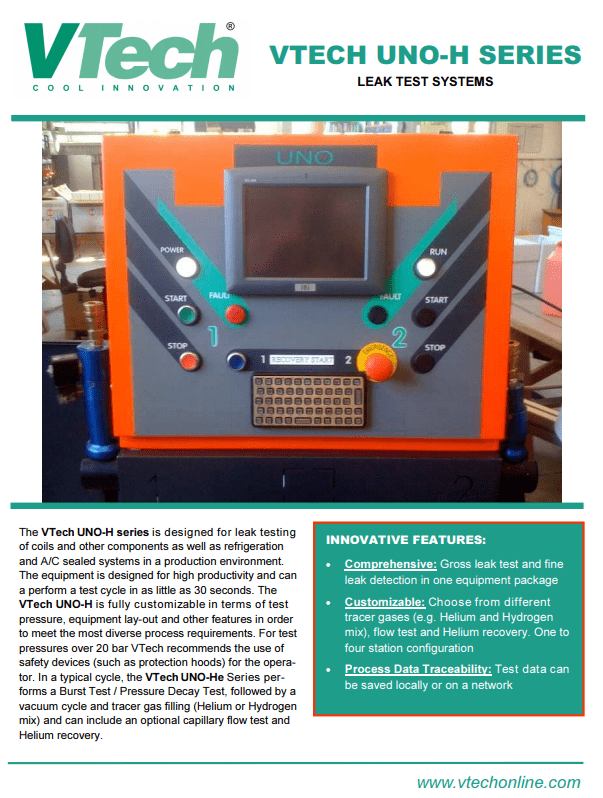

    VTech UNO-H, Pressure Leak Test System
    VTech UNO-H, Pressure Leak Test System
