Pre-Evacuation for Commercial/Domestic Refrigeration and Air Conditioning

The importance of pre-evacuation in refrigeration and A/C assembly process cannot be stressed enough since it has a direct correlation with the overall product quality. Please consult our knowledge base on Pre-Evacuation in our Process Technology Fundamentals section for more information.

VTech’s pre-evacuation equipment ranges from a single pump manual configuration to plant-wide pre-evacuation carousels with process data tracking. During the project design phase, we take into account specific parameters of the refrigeration circuit while reviewing the assembly line process, in order to identify the expected level of condensable and non-condensable gases present inside the circuit. Once we have established the minimum acceptable pre-evacuation time as well as the Takt time of the production line, we can establish the number of pre-evacuation units required. The next step is to decide on the lay-out.

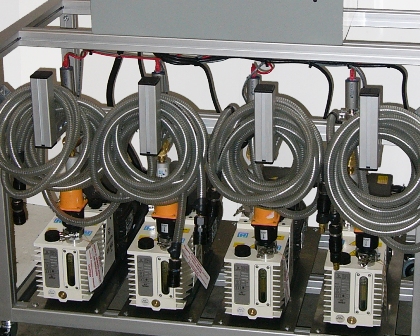

In commercial refrigeration, where typical Takt time is longer, we tend to use multiple-pump solutions on carts that can be wheeled around as needed. This type of system is typically PLC-controlled and allows for pre-evacuation and vacuum decay leak test. In domestic refrigeration, the most typical layout is a carousel indexed according to the takt time of the process.

VTech works directly with the customer to set up the installation and provide maintenance training.

VTECH PRE-EVACUATION EQUIPMENT

Vacuum Pump Sizes
  • From 6 to 21 cfm (10m3/h to 28m3/h)
Vacuum Gauge Type
  • Active Pirani
  • Vacuum Transducer
Vacuum Pump Ultimate Pressure
  • 1 x 10-4 mbar
Vacuum Measurement range
  • 1,000 to 1 x 10-3 mbar
Vacuum Measurement Units
  • Pa
  • Hg
  • µm
  • Torr
Pre-Evacuation Equipment Control
  • PLC, PC
Pre-Evacuation Equipment User Interface
  • Digital Display
  • PC Interface
Vacuum Hose Quick disconnect fittings
  • PCU
  • Hansen
  • FasTest
  • Others on request
Pre-Evacuation Equipment Product Applications
  • Commercial Refrigerators
  • Domestic Refrigerators
  • Air conditioners (unitary to rooftop)
  • Scientific
  • Water Coolers
  • Display cases
  • Food prep
  • Walk-in coolers
  • Heat pumps
  • Pool heaters
  • Sensitive electronics cooling
  • Chillers
  • Construction equipment
  • Beverage Systems

Pre-Evacuation System

VTech Pre-Vac 10

VTech’s Pre-Vac 10 Manual Pre-Evacuation System is designed to evacuate refrigeration circuits before refrigerant filling, meeting the requirements of outgassing and drying phases for HVAC/R production lines. VTech’s Pre-Vac 10 consists of a single vacuum pump, vacuum hose and manifold assembly with digital vacuum gauge, which displays the current vacuum level in microns, torr, etc. The Pre-Vac 10 can be realized in a stationary configuration, integrated with a carousel system(such as VTech DataVac), or on its own portable cart.

Its “manual” operation requires that the evacuation time be kept by the operator. If an automatic type system is required, then the VTech 40 is desirable; the VTech 40 systems include customizable presets so the operator does not have to monitor the cycle, as well as a vacuum decay leak test.

Show More
  • Technical Data
    TypeManual
    Vacuum Decay TestNo
    Vacuum sensorActive Pirani
    Vacuum measurement range1 x 104 ÷ 1 x 10-3 Pa (7.5 x 104 ÷ 7.5 x 10-1 µm)
    Vacuum measurement unitPa, Torr, µm Hg
    Rotary pump ultimate vacuum1 x 10-2 Pa (1 x 10-4 mbar, 7.5 x 10-2 µm Hg)
    # of Hose Pairs1
    Vacuum hose length8 ft2.4 m
    # of Vacuum Pumps1
    User InterfaceDigital Vacuum Gauge Display
    ControlN/A
    Vacuum Pump Size10 m³/h6.8 cfm
  • Downloads
Request for Quote

VTech Pre-vac 40

The VTech 40 Automatic Pre-Evacuation Systems perform an automatic pre-evacuation cycle, followed by a vacuum decay test, before signaling to the operator by the touch screen and stack light that the test is complete. Since the system is automatic, it is possible to use unit number-specific preset vacuum parameters (i.e. time and vacuum level) to perform this operation, taking away the need to monitor these factors manually. The pumps can perform either the same or different cycles simultaneously; unused pumps can be turned off.

The VTech 40 can be configured as follows:

-VTech 40-1 with one vacuum pump
-VTech 40-2 with two vacuum pumps
-VTech 40-3 with three vacuum pumps
-VTech 40-4 with four vacuum pumps

Show More
  • Technical Data
    TypeAutomatic
    Vacuum Decay TestYes
    Vacuum sensorVacuum Tranducer
    Vacuum measurement range1 x 104 ÷ 1 x 10-3 Pa (7.5 x 104 ÷ 7.5 x 10-1 µm)
    Vacuum measurement unitPa, Torr, µm Hg
    Rotary pump ultimate vacuum1 x 10-2 Pa (1 x 10-4 mbar, 7.5 x 10-2 µm Hg)
    # of Hose Pairs1-4
    Vacuum hose length8 ft2.4 m
    # of Vacuum Pumps1-4
    User Interface6″ Monochrome Touchscreen
    ControlPLC
    Vacuum Pump Size10 m³/h6.8 cfm
  • Downloads
Request for Quote

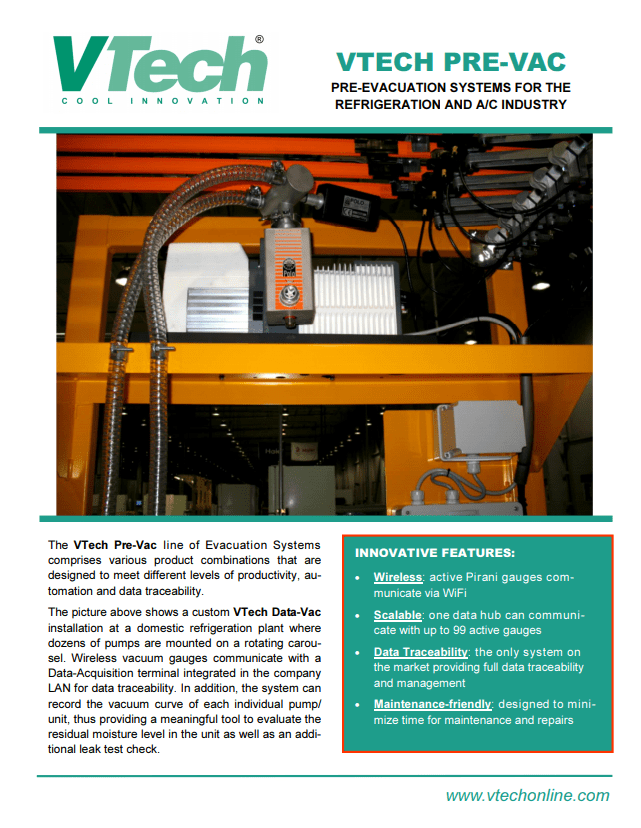

VTech Data-Vac

The Data-Vac system is designed for domestic and commercial refrigeration manufacturers who have a number of pumps from which to monitor and collect vacuum data for quality purposes. Data-Vac adds a high level of automation to any production line, re-ducing operator dependency.VTech’s Data-Vac Vacuum Data Management Sys-tem consists primarily of a RF-GATE wireless com-munication hub and TA-SAT PC Monitoring System, which work together to record and process vacuum data from a remote evacuation carousel via RS232 or wireless connection. The RF-GATE transmits the vacuum data being collected by the TA100/TA100RF vacuum gauges, and sends it to the TA-SAT system for monitoring, recording, trending, etc. The TA-SAT system includes and Industrial PC with Hard drive, keyboard, mouse, 15’’ LCD monitor, Windows XP, PC100 and integration of RF-GATE.

Show More
