VTech supplies turn-key installations or individual equipment for flammable refrigerant charging. This includes regulatory compliance as well as engineering support during the whole life of the project.

Product Items

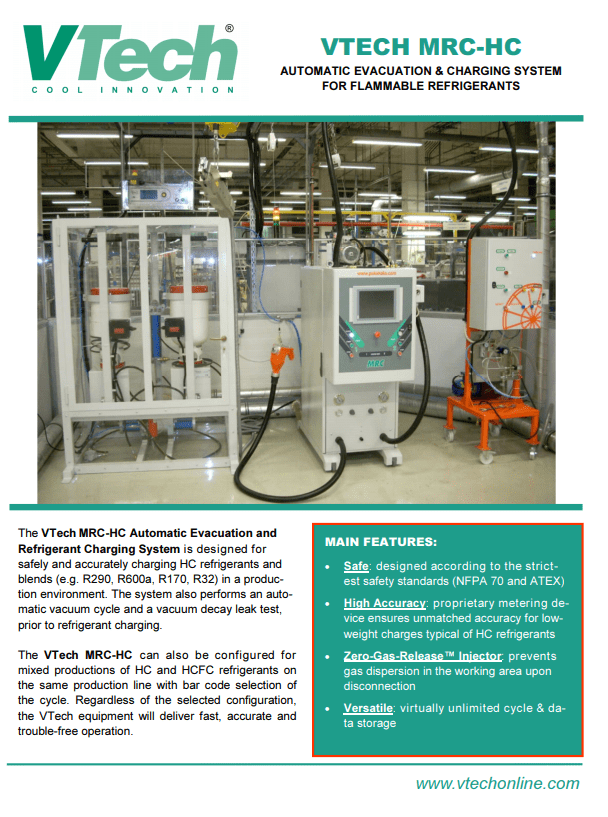

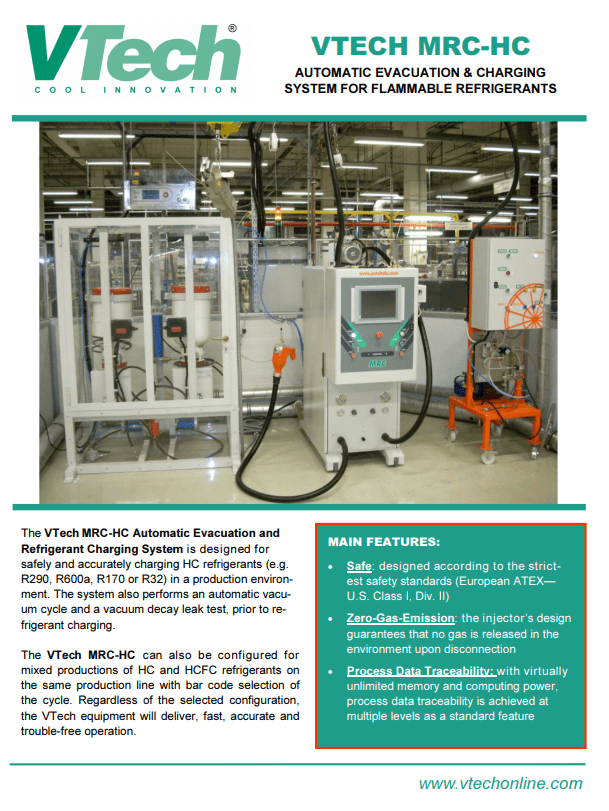

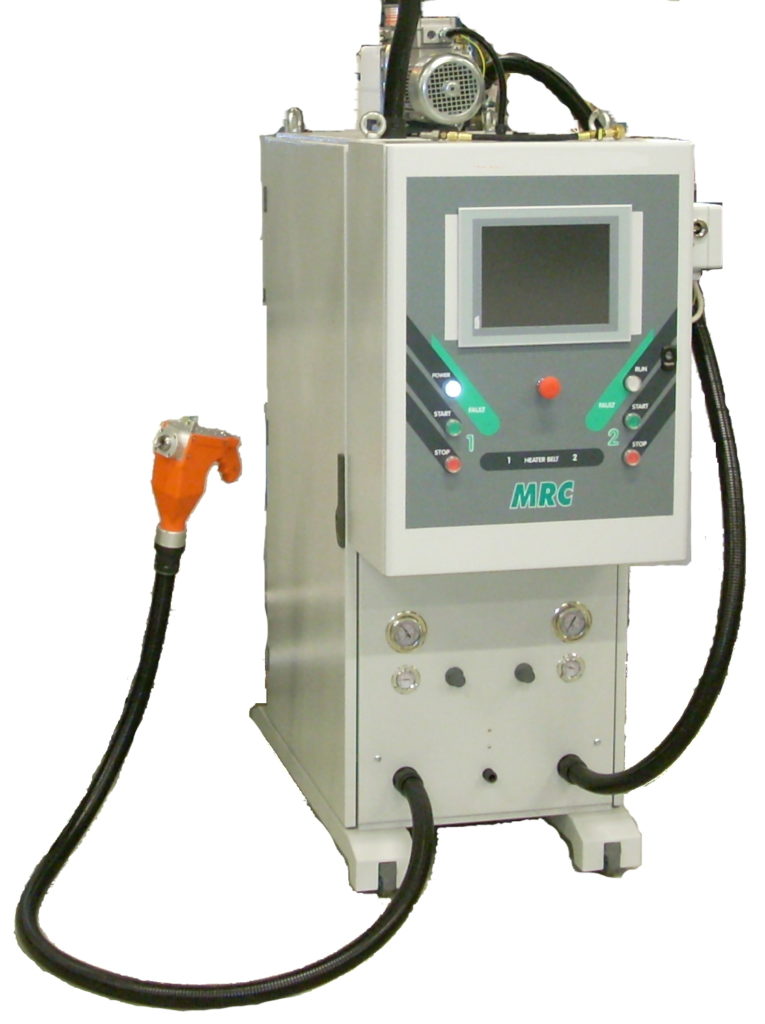

VTech MRC-HC, Refrigerant Charging System for HC Refrigerants

The VTech MRC-HC Automatic Evacuation and Refrigerant Charging System is designed for safely and accurately charging flammable refrigerants (e.g. R290, R600a, R170, R32 and others) in a production environment. It is typically used in low to medium productivity environments such as Commercial Refrigeration or Scientific Applications.

The VTech MRC-HC can also be configured for mixed productions of HC and HFC refrigerants on the same production line with barcode selection of the cycle. Compressor oil charging capability is also available.

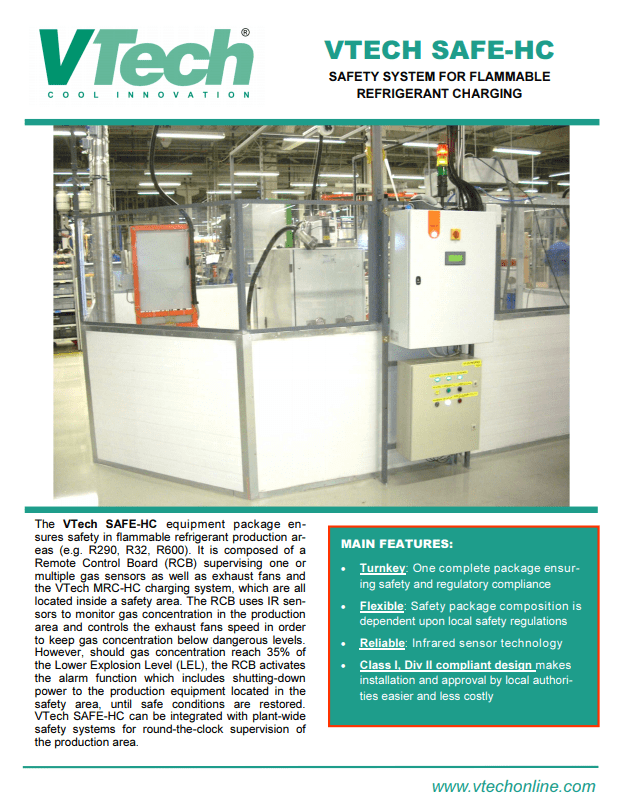

A Safety Equipment Package (SAFE-HC) is configured for each installation in accordance with NFPA70 (Class I, Div. 2 in North America or ATEX where applicable). VTech will deliver a turnkey solution including regulatory compliance. Please refer to the SAFE-HC brochure for additional information.

Show More
VTech MRC-HC
  • Technical Data
    Refrigerant TypeIsobutane (R600a), Propane (R290), Ethane (R170), R32, HFC, HFO
    # of Filling Injectors1 or 2
    # of Vacuum Pumps1 or 2
    Filler Length2.5 m (8 ft), others on request
    Refrigerant Metering TechnologyVolumetric
    Mass-Flow
    Charging Speedup to 150 g/s (5.3 oz/s)
    Charging Accuracy (weight)±0.5 g < 100 g (± 0.017 oz < 3.5 oz)
    ±0.5% > 100 g (3.5 oz)
    Charging Accuracy (%) >100g ± 0.5 g %
    User Interface12″ Color Touch Screen
    ControlPLC
    Vacuum Pump SizeChoice of 7, 11, 15 cfm
  • Safety Accessories
    Remote Safety MonitoringPower Management & Ventilation Control
    VentilationExhaust Fans with Flow Sensors
    Gas DetectionInfrared Sensors
    Safety EnclosuresDesigned and Built to Suit
  • Options
    Stack Light2 or 3 Color Visual AlarmAudio Alarm
    Barcode ScanningBarcode Read/Write
    Data-ManagementProcess Data Read/Write
    Larger Vacuum Pump15 m³/h (11 cfm)21 m³/h (15 cfm)
    Larger Touch Screen15″ Color17″ Color

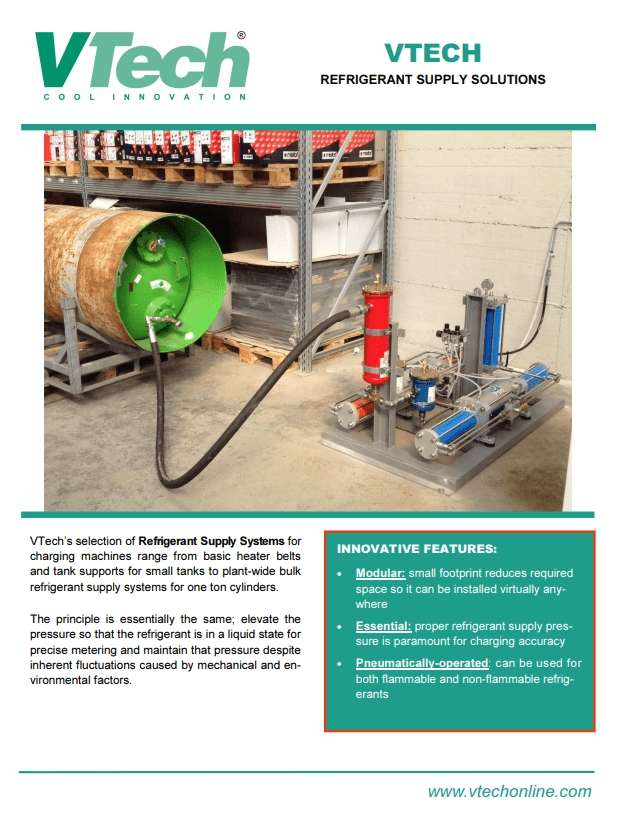

  • Refrigerant Supply
    Refrigerant SupplyHeater Belt(s) & Tank Support(s) for 100 lb. tanksRefrigerant Transfer Pump & Accumulator for Bulk tanks
  • Support
    Internet Support ReadyRemote Assistance
    Warranty12 Months StandardExtended Warranty Available
    Technical AssistanceField Service EngineeringFree Lifetime Telephone & Email SupportIn-house Equipment Repair
    Installation & TrainingGuided Project Start-up
    Progressive Training
    Turnkey Assembly Lines
  • Downloads
Request For Quote

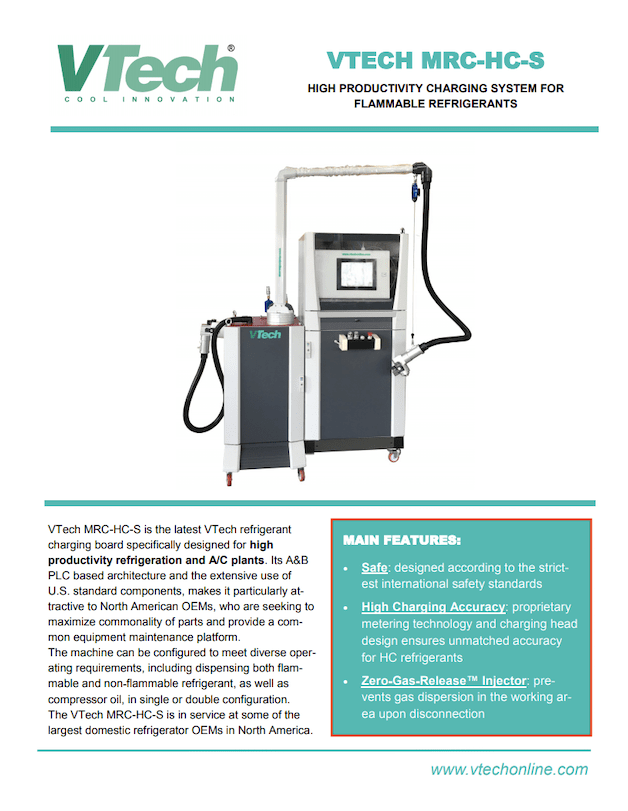

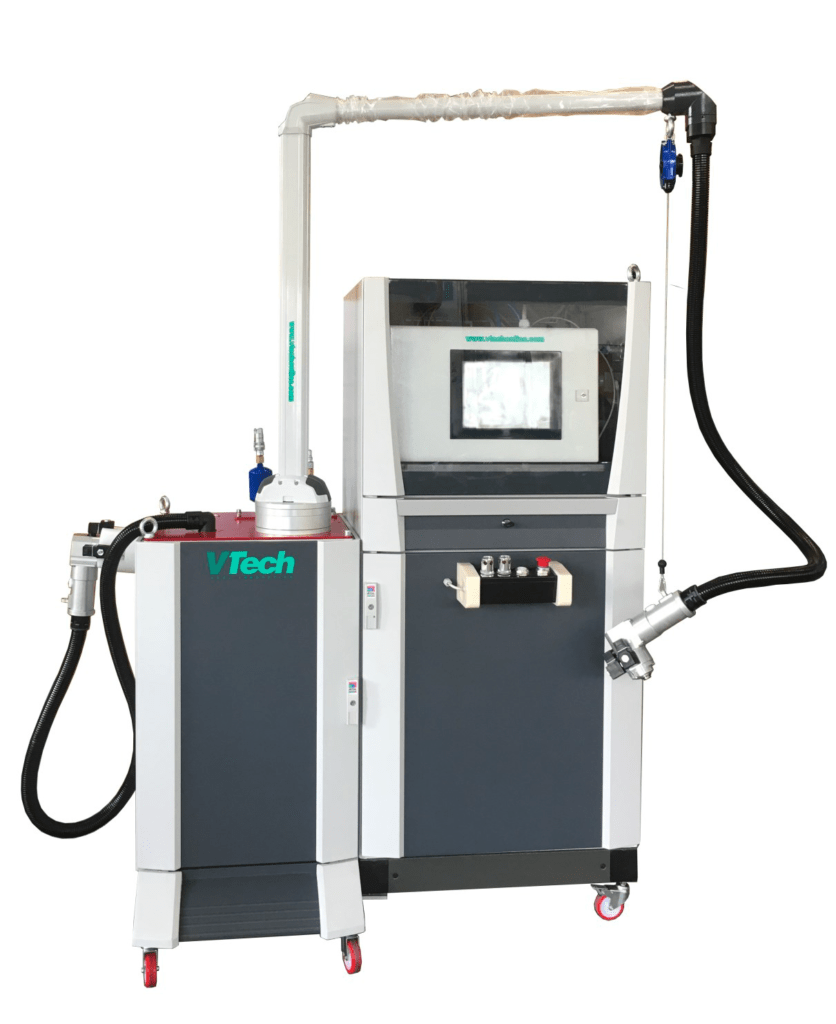

VTech MRC-HC-S Automatic Evacuation and Refrigerant Charging System

The VTech MRC-HC-S Automatic Evacuation and Refrigerant Charging System is designed for safely and accurately charging flammable refrigerants (e.g. R290, R600a, R170, R32 and others) in high productivity environments such as Domestic Refrigeration and Air Conditioning.

The VTech MRC-HC-S can also be configured for mixed productions of HC and HFC-HFO refrigerants on the same production line with barcode selection of the cycle. Compressor oil charging capability is also available.

Custom configurations for specific requirements can be designed using standard equipment modules.

Show More
VTech MRC-HC-S
  • Technical Data
    Refrigerant TypeIsobutane (R600a), Propane (R290), Ethane (R170), R32, R1234yf, HFC, HFO
    # of Filling Injectors1 or 2
    # 0f Vacuum Pumps1 or 2
    Filler Length2.5 m (8 ft), others on request
    Refrigerant Metering TechnologyVolumetric

    Mass-Flow

    Charging Speedup to 150 g/sup to 5.3 oz/s
    Charging Accuracy (weight)± 0.5 g < 100 g g± 0.017 oz < 3.5 oz
    Charging Accuracy (%)±0.5 g < 100 g (± 0.017 oz < 3.5 oz)

    ±0.5% > 100 g (3.5 oz)

    User Interface12″ Color Touch Screen
    ControlPLC
    Vacuum Pump SizeChoice of 7, 11, 15 cfm
  • Safety Accessories
    Remote Safety MonitoringPower Management & Ventilation Control
    VentilationExhaust Fans with Flow Sensors
    Gas DetectionInfrared Sensors
    Safety EnclosuresDesigned and Built to Suit
  • Options
    Stack Light2 or 3 Color Visual AlarmAudio Alarm
    Barcode ScanningBarcode Read/Write
    Data-ManagementProcess Data Read/Write
    Larger Vacuum Pump15 m³/h (11 cfm)21 m³/h (15 cfm)
    Larger Touch Screen15″ Color17″ Color
  • Refrigerant Supply
    Refrigerant SupplyHeater Belt(s) & Tank Support(s) for 100 lb. tanksRefrigerant Transfer Pump & Accumulator for Bulk tanks
  • Support
    Internet Support ReadyRemote Assistance
    Warranty12 Months StandardExtended Warranty Available
    Technical AssistanceField Service EngineeringFree Lifetime Telephone & Email SupportIn-house Equipment Repair
    Installation & TrainingGuided Project Start-up
    Progressive Training
    Turnkey Assembly Lines
  • Downloads
Request A Quote
