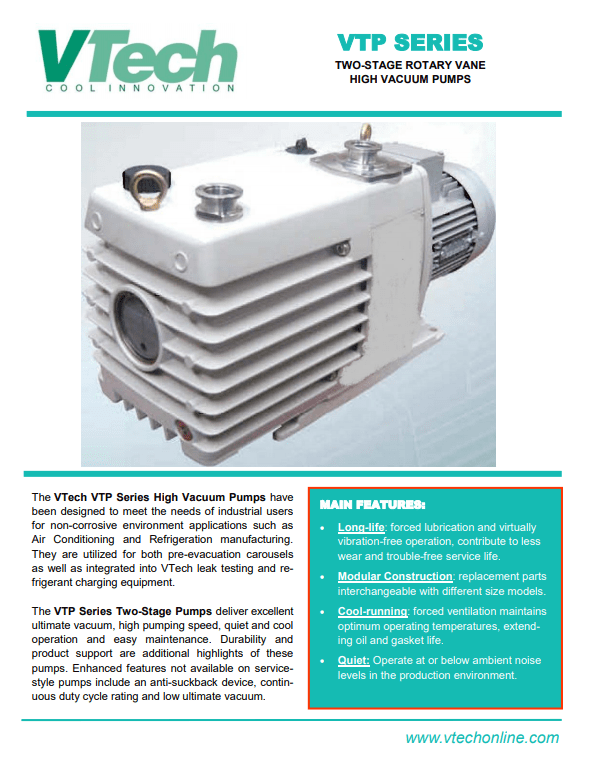

The VTech VTP Series High Vacuum Pumps have been designed to meet the needs of industrial users for non-corrosive environment applications such as Air Conditioning and Refrigeration manufacturing. They are utilized for both pre-evacuation carousels as well as integrated into VTech leak testing and refrigerant charging equipment.
| Model | VTP6 | VTP12 | VTP24 | VTP36 | VTP60 | VTP90 |
|---|---|---|---|---|---|---|
| Ultimate Partial Pressure w/out gas ballast (Torr)* | 5*10-4 | |||||
| Ultimate Partial Pressure with gas ballast (Torr)* | 5*10-3 | |||||
| Oil Capacity (Liter) | 1.1 | 1.2 | 2.0 | 2.3 | 4.5 | 6.5 |
| Inlet/Outlet Port Flange Size | KF25 | KF25 | KF25 | KF25 | KF40 | KF40 |
| Motor Power (Kw) 3ph 230/460V / 1ph 115-230 V | 0.4/0.55 | 0.4/0.55 | 0.75/0.75 | 0.75/- | 2.2/- | 2.2(3) |
| Rotational Speed @ 60 Hz (rpm) | 1750 | |||||
| Noise level (w/out gas ballast) dB | 50 | 50 | 52 | 52 | 56 | 56 |
| Weight (lb./kg) | 46/21 | 49/22.5 | 84/38 | 90/41 | 150/68 | 185/84 |

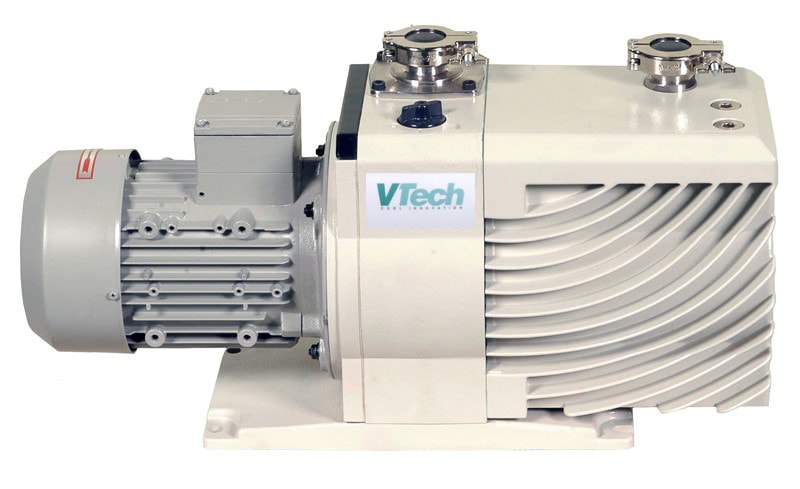

The VTP Series Two-Stage Pumps deliver excellent ultimate vacuum, high pumping speeds, quiet and cool operation and easy maintenance. Durability and product support are additional highlights of these pumps. Enhanced features not available on service-style pumps include an anti-suckback device, continuous duty cycle rating and low ultimate pressure.
Product Items
VTP6, Dual Stage Rotary Vane Vacuum Pump
The VTech VTP6 Dual Stage Rotary Vane Vacuum Pump is a small size pump suitable for a wide variety of non-corrosive uses including evacuating small components and refrigeration systems in a repair or R&D type enviroment.
- Technical Data
Displacement 3.8 cfm6.0 cm³/hour Ultimate Partial Pressure without gas ballast 5 x 10-4 Torr Ultimate Partial Pressure with gas ballast 5 x 10-3 Torr Rotational Speed @ 60 Hz 1,740 rpm Inlet/Outlet Port Flange Size KF25 Motor Power (Kw) 0.4/0.55 Oil Capacity 1.1 L Noise level (w/out gas ballast) 50 dB Weight 22.6 kg50 lb - Downloads
VTP12, Dual Stage Rotary Vane Vacuum Pump
The VTech VTP12 Dual Stage Rotary Vane Vacuum Pump is a medium size pump suitable for a wide variety of non-corrosive uses including evacuating small components and refrigeration systems in a repair or R&D type enviroment.
- Technical Data
Displacement 7.6 cfm12.0 cm³/hour Ultimate Partial Pressure without gas ballast 5 x 10-4 Torr Ultimate Partial Pressure with gas ballast 5 x 10-3 Torr Rotational Speed @ 60 Hz 1,740 rpm Inlet/Outlet Port Flange Size KF25 Motor Power (Kw) 0.4/0.55 Oil Capacity 1.3 L Noise level (w/out gas ballast) 50 dB Weight 36.2 kg80 lb - Downloads
VTP24, Dual Stage Rotary Vane Vacuum Pump
The VTech VTP24 Dual Stage Rotary Vane Vacuum Pump is a medium to large size pump suitable for a wide variety of non-corrosive uses including evacuating large components and refrigeration systems in a production type enviroment. VTP24 is also ideal for integration with pre-evacuation, leak detection and refrigerant charging systems.
- Technical Data
Displacement 15.2 cfm24.0 cm³/hour Ultimate Partial Pressure without gas ballast 5 x 10-4 Torr Ultimate Partial Pressure with gas ballast 5 x 10-3 Torr Rotational Speed @ 60 Hz 1,740 rpm Inlet/Outlet Port Flange Size KF25 Motor Power (Kw) 0.75/0.75 Oil Capacity 1.4 L Noise level (w/out gas ballast) 52 dB Weight 36.2 kg80 lb - Downloads
VTP36, Dual Stage Rotary Vane Vacuum Pump
The VTech VTP36 Dual Stage Rotary Vane Vacuum Pump is a large size pump suitable for a wide variety of non-corrosive uses including evacuating large components and refrigeration systems in a production type enviroment. VTP36 is also ideal for integration with pre-evacuation, leak detection and refrigerant charging systems.
- Technical Data
Displacement 22.8 cfm36.0 cm³/hour Ultimate Partial Pressure without gas ballast 5 x 10-4 Torr Ultimate Partial Pressure with gas ballast 5 x 10-3 Torr Rotational Speed @ 60 Hz 1,740 rpm Inlet/Outlet Port Flange Size KF25/40 Motor Power (Kw) 0.75/- Oil Capacity 1.8 L Noise level (w/out gas ballast) 52 dB Weight 38.5 kg85 lb - Downloads
VTP48, Dual Stage Rotary Vane Vacuum Pump
The VTech VTP48 Dual Stage Rotary Vane Vacuum Pump is a large size pump suitable for a wide variety of non-corrosive uses including evacuating large components and refrigeration systems in a production type enviroment.VTP48 is also ideal for integration with pre-evacuation, leak detection and refrigerant charging systems.
- Technical Data
Displacement 30.5 cfm48.0 cm³/hour Ultimate Partial Pressure without gas ballast 5 x 10-4 Torr Ultimate Partial Pressure with gas ballast 5 x 10-3 Torr Rotational Speed @ 60 Hz 1,740 rpm Inlet/Outlet Port Flange Size KF40 Motor Power (Kw) 1.5/- Oil Capacity 3.8 L Noise level (w/out gas ballast) 56 dB Weight 63.5 kg140 lb - Downloads
